tb_lf_synthetic_aperture — 2D typed op
- データ種:
lightfield→image - 呼び出し:
fullseye.apply(img, "tb_lf_synthetic_aperture", a=0.5, b=0.5)(2-D は 1 画像 + 2 スカラつまみa,b∈[0,1]のモデル)
図は合成の入力 128×128 で実際に走らせた出力。左が入力、右が出力。点群は上から見た散布(明るさ = z)、1-D 列は折れ線、体積は z 方向の最大値投影、動画は中央フレーム、複素画像は振幅、絵にならない返り値は値そのもの。
つまみ a は出力を変えない(実測: 0.1 / 0.5 / 0.9 で同一)。
つまみ b は出力を変えない(実測: 0.1 / 0.5 / 0.9 で同一)。

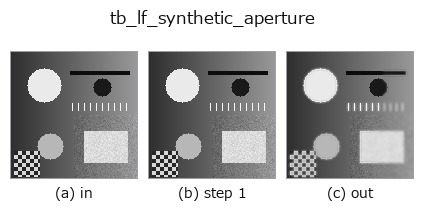

段階(前置きの op → この op。左から順):

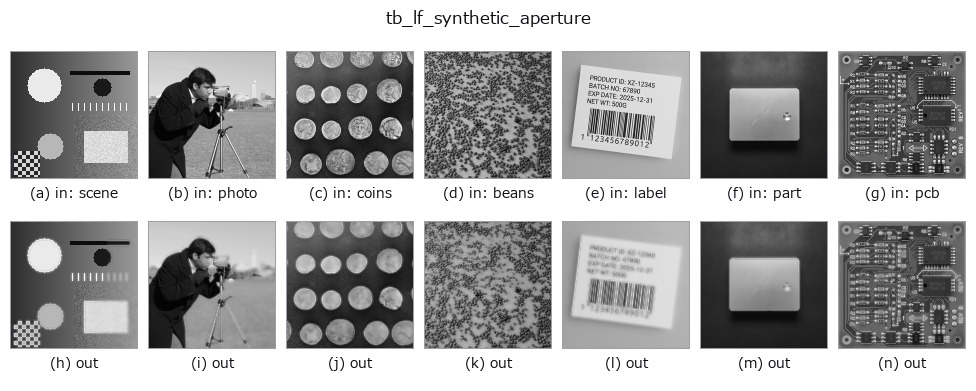

別の画像でも(合成シーン / 写真 / 硬貨。上段が入力、下段がその出力。つまみは既定):
使い方
Refocus through a shaped aperture — and, with reduce="median", through occluders.
Same shift-and-add geometry as :func:`lf_refocus`, with two additions:
* *mask* — a ``(V, U)`` weight array from :func:`lf_aperture_mask` (or your
own). A small mask is a stopped-down aperture: less defocus blur, less
light. ``None`` weights every view equally.
* *reduce* — how the aligned views are combined. ``mean`` is the classical
(and linear) synthetic aperture. ``median`` is the interesting one: when
a foreground occluder covers a *minority* of the views at a pixel, the
median rejects it and the background behind it is reconstructed —
looking through a fence, or through a rack of parts. ``max`` / ``min``
are the order-statistic extremes, useful for specular / shadow work.
``median``, ``max`` and ``min`` use the mask only to *select* views
(weight > 0), because an order statistic has no meaningful weighting;
that is stated here rather than silently ignoring the weights.
The see-through result is not a metaphor. When **fewer than half** the views
are blocked at a hidden pixel, more than half of them carry the identical
background sample and the median is that sample **exactly**. Measured
2026-09-01 on a 9x9x64x64 field with an occluder covering 25% of the centre
view at slope 3.0 (blocking at most 46% of the views at any hidden pixel):
RMS against the true, hidden background was **0.0** for ``median`` and
0.159 for ``mean``, with the centre view itself at 0.280. Push the coverage
to 35% (up to 60% of views blocked) and the guarantee is gone — the median
lands at 0.133, worse than nothing.
Returns a ``(H, W)`` 2-D image.
**Raises** ``ValueError``: *lf* not a valid light field, a *mask* whose
shape is not ``(V, U)`` or which is non-finite / negative / selects no view,
a non-finite or over-large *slope*, unknown *reduce* / *interp* / *edge*.
Typed bridge of the lightfield op lf_synthetic_aperture into the 2-D evolution registry: the same implementation, called under the op(v, a, b) convention. This op has no tunable parameter; a and b are unused.
