tb_lf_depth_from_focus — 2D typed op
- データ種:
lightfield→image - 呼び出し:
fullseye.apply(img, "tb_lf_depth_from_focus", a=0.5, b=0.5)(2-D は 1 画像 + 2 スカラつまみa,b∈[0,1]のモデル)
図は合成の入力 128×128 で実際に走らせた出力。左が入力、右が出力。点群は上から見た散布(明るさ = z)、1-D 列は折れ線、体積は z 方向の最大値投影、動画は中央フレーム、複素画像は振幅、絵にならない返り値は値そのもの。
出力は viridis 風の疑似カラー(暗い紫 = 小、黄 = 大)。距離・位相・向き・深度のような「量の場」を読むため。
つまみ a は出力を変えない(実測: 0.1 / 0.5 / 0.9 で同一)。
つまみ b は出力を変えない(実測: 0.1 / 0.5 / 0.9 で同一)。

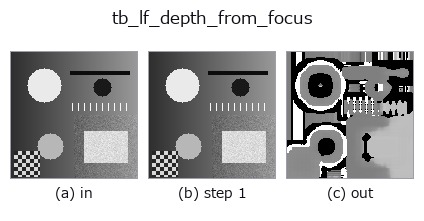

段階(前置きの op → この op。左から順):

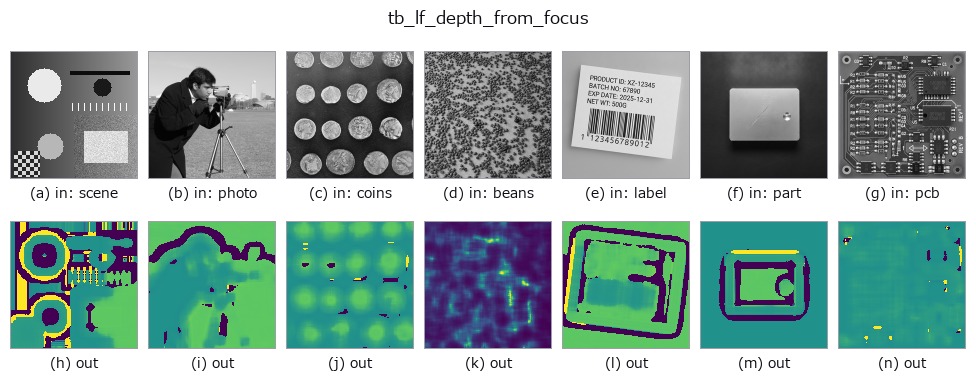

別の画像でも(合成シーン / 写真 / 硬貨。上段が入力、下段がその出力。つまみは既定):
使い方
Per-pixel slope from the sharpness peak across the refocus sweep.
Refocus at every slope in slopes, measure local sharpness (measure:
laplacian = summed modified Laplacian, the classical depth-from-focus
operator; variance = local variance; gradient = local gradient
energy) in a window x window neighbourhood, and take the slope at which
each pixel is sharpest. With subpixel=True (default) the peak is refined
by fitting a parabola through the winning sample and its two neighbours on a
uniformly spaced sweep — on a non-uniform sweep the refinement is
skipped rather than applied with the wrong spacing.
Unbiased where :func:lf_epi_slope is not: measured 2026-09-01 on a
5x5x64x64 synthetic field over a 121-point sweep from -3 to +3, the argmax
landed exactly on the true slope in 18 of 18 combinations (true slopes
0.0, +0.5, +1.0, +1.5, +2.0, -1.0 crossed with texture sigma 1.5 / 3.0 /
5.0 px), and the sub-pixel refinement left every one of them unmoved. Its
resolution, though, is whatever you put in slopes — it cannot see a plane
you never refocused on.
Returns (slope_map, sharpness): the (H, W) map of estimated slopes
(in px per angular step) and the (H, W) peak focus-measure value, which
is the honest confidence — a textureless pixel has no sharpness peak, gets
an essentially arbitrary slope, and its sharpness is ~0. Threshold on it
rather than trusting the map everywhere.
Raises ValueError: lf not a valid light field, slopes empty /
over :data:MAX_STACK_SLICES / over :data:MAX_STACK_ELEMENTS / containing
a non-finite or over-large value, an even or non-positive window, unknown
measure / interp / edge.
Typed bridge of the lightfield op lf_depth_from_focus into the 2-D evolution registry: the same implementation, called under the op(v, a, b) convention. This op has no tunable parameter; a and b are unused.
参考(サンプルデータ・文献)
- サンプルデータ カタログ(DL URL / ライセンス) — 2-D は skimage.data(BSD/public)+ 合成、3-D は実データ源(Stanford/PDS 等)の DL URL。
- 演算子の来歴・参考文献 — この op 族の元になった研究/手法の出典。
Studio で試す
下のプログラムは実際に走ることを確かめてある(図と同じ入力)。Studio のヘルプではこのブロックがボタンになり、その場で読み込んで実行できる。
img_to_lightfield 0.50 0.50
tb_lf_depth_from_focus 0.50 0.50
実行できる例(この op を実際に呼ぶ検証済みサンプル)
次の例は元の台帳 op lf_depth_from_focus を呼ぶもの。この橋渡し op は同じ実装を fn(v, a, b) 規約に合わせただけなので、挙動はそのまま当てはまる(呼び出し形だけ違う)。
- lightfield_depth —
py -3.11 examples/lightfield_depth.py - plenoptic_decode_pipeline —
py -3.11 examples/plenoptic_decode_pipeline.py - poc_compound_eye —
py -3.11 examples/poc_compound_eye.py - poc_lightfield_depth —
py -3.11 examples/poc_lightfield_depth.py - poc_plenoptic_camera —
py -3.11 examples/poc_plenoptic_camera.py
