tb_weighting_response — 2D typed op
- データ種:
signal→signal - 呼び出し:
fullseye.apply(img, "tb_weighting_response", a=0.5, b=0.5)(2-D は 1 画像 + 2 スカラつまみa,b∈[0,1]のモデル)
図は合成の入力 128×128 で実際に走らせた出力。左が入力、右が出力。点群は上から見た散布(明るさ = z)、1-D 列は折れ線、体積は z 方向の最大値投影、動画は中央フレーム、複素画像は振幅、絵にならない返り値は値そのもの。
つまみ a は出力を変えない(実測: 0.1 / 0.5 / 0.9 で同一)。
つまみ b は出力を変えない(実測: 0.1 / 0.5 / 0.9 で同一)。

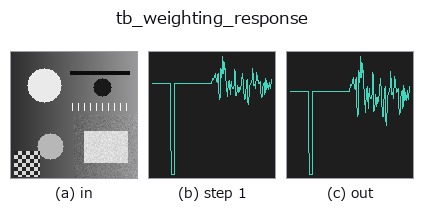

段階(前置きの op → この op。左から順):

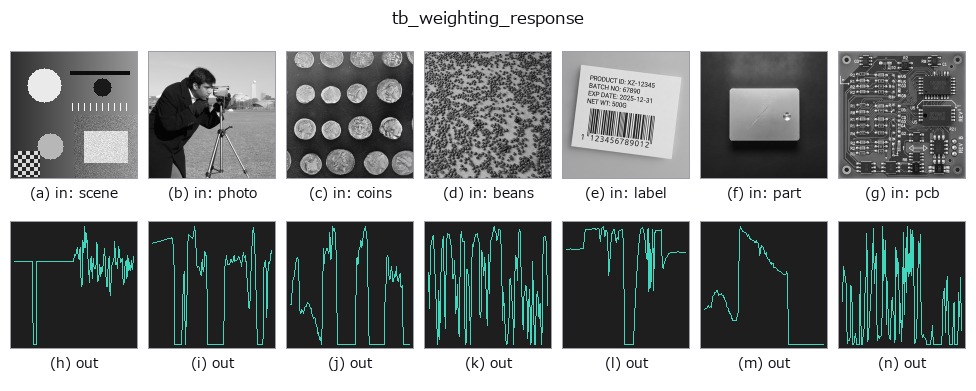

別の画像でも(合成シーン / 写真 / 硬貨。上段が入力、下段がその出力。つまみは既定):
使い方
The A / C / Z frequency-weighting curve, in dB, at the given frequencies.
Computed from the four pole frequencies that *define* the networks and
normalised so that the response at 1 kHz is exactly 0 dB **by construction**
— the curve is divided by its own value at 1 kHz rather than having a
published offset constant added to it. That is why the tests can assert
equality at 1 kHz to 0.0 rather than to a tolerance, and why no standard's
table of attenuations appears anywhere in this repository.
The response depends on ``f`` only through ``f**2``, so it is an even
function and negative frequencies are evaluated at ``|f|`` — that is the
definition, not a repair. ``f = 0`` has zero response (both curves have a
zero at DC) and is reported as ``floor_db`` rather than ``-inf``.
Measured (computed, then printed — these are outputs, not transcriptions):
======== ========= =========
f (Hz) A (dB) C (dB)
======== ========= =========
10 -70.4304 -14.3300
31.5 -39.5250 -3.0305
100 -19.1428 -0.2996
1000 0.0000 0.0000
4000 0.9633 -0.8260
10000 -2.4918 -4.4055
20000 -9.3469 -11.2786
======== ========= =========
``A(1000)`` and ``C(1000)`` are exactly ``0.0`` — the Python float, not a
rounding — because of the construction. The low-frequency asymptote is a
closed form and is asserted in the tests: ``A`` falls at exactly
80 dB/decade as ``f -> 0`` (``f**4`` over three constants) and ``C`` at
exactly 40 dB/decade (``f**2``). Measured between 0.001 and 0.01 Hz with the
floor lowered out of the way: **79.999998** and **39.999998** dB/decade.
That last caveat is real and is why the floor is an argument: with the
default ``floor_db = -200`` the A curve reaches the floor below about
0.35 Hz (unfloored, ``A(0.1) = -228.55`` dB), so the asymptote measured
against the default floor comes out as 0.0 dB/decade between 0.01 and
0.1 Hz — a clamp, correctly reported, that would look like a bug if the
floor were not visible.
Returns a float64 array the same shape as *freqs*.
**Raises** ``ValueError``: a non-1-D / non-finite / complex / masked
``freqs``, an unknown ``kind``.
Typed bridge of the acoustics op weighting_response into the 2-D evolution registry: the same implementation, called under the op(v, a, b) convention. This op has no tunable parameter; a and b are unused.
参考(サンプルデータ・文献)
- サンプルデータ カタログ(DL URL / ライセンス) — 2-D は skimage.data(BSD/public)+ 合成、3-D は実データ源(Stanford/PDS 等)の DL URL。
- 演算子の来歴・参考文献 — この op 族の元になった研究/手法の出典。
Studio で試す
下のプログラムは実際に走ることを確かめてある(図と同じ入力)。Studio のヘルプではこのブロックがボタンになり、その場で読み込んで実行できる。
img_to_signal 0.50 0.50
tb_weighting_response 0.50 0.50
実行できる例(この op を実際に呼ぶ検証済みサンプル)
次の例は元の台帳 op weighting_response を呼ぶもの。この橋渡し op は同じ実装を fn(v, a, b) 規約に合わせただけなので、挙動はそのまま当てはまる(呼び出し形だけ違う)。
- acoustic_condition_monitoring —
py -3.11 examples/acoustic_condition_monitoring.py
型が繋がる次の op(signal を入力に取れる)
identity · tb_create_funct_1d_array · tb_smooth_funct_1d_gauss · tb_smooth_funct_1d_mean · tb_derivate_funct_1d · tb_integrate_funct_1d · tb_zero_crossings_funct_1d · tb_abs_funct_1d
同カテゴリ(typed)
tb_points_to_voxel · tb_estimate_point_normals · tb_iss_keypoints · tb_project_points · tb_render_point_depth · tb_statistical_outlier_removal · tb_radius_outlier_removal · tb_voxel_grid_downsample
