fullseye
tb_beamform_delay_sum — 2D typed op
- データ種:
beatcube→signal - 呼び出し:
fullseye.apply(img, "tb_beamform_delay_sum", a=0.5, b=0.5)(2-D は 1 画像 + 2 スカラつまみa,b∈[0,1]のモデル)
図は合成の入力 128×128 で実際に走らせた出力。左が入力、右が出力。点群は上から見た散布(明るさ = z)、1-D 列は折れ線、体積は z 方向の最大値投影、動画は中央フレーム、複素画像は振幅、絵にならない返り値は値そのもの。

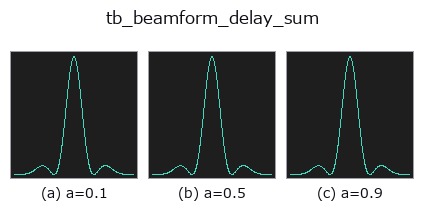

つまみ a を振る(0.1 / 0.5 / 0.9、もう一方は既定):
つまみ b は出力を変えない(実測: 0.1 / 0.5 / 0.9 で同一)。

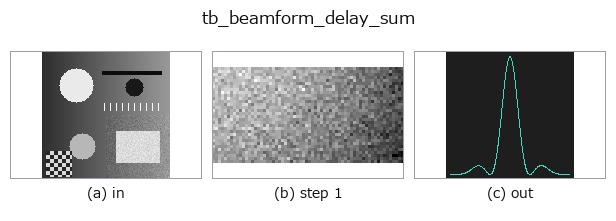

段階(前置きの op → この op。左から順):

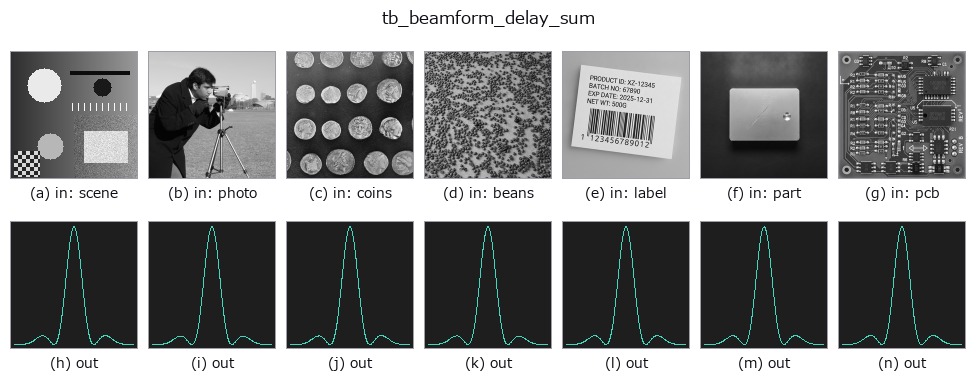

別の画像でも(合成シーン / 写真 / 硬貨。上段が入力、下段がその出力。つまみは既定):
使い方
Delay-and-sum (Bartlett) angle spectrum for one range-Doppler cell.
Takes the per-antenna complex value at a single range-Doppler cell — by
default the strongest one — and for each steering angle removes the expected
inter-element phase and sums:
``P(theta) = |sum_k conj(exp(1j*2*pi*d*k*sin(theta)/lambda)) * x_k|^2``
which peaks at the true arrival angle with value ``(N_a * |a|)^2``: the
aperture gives ``N_a`` in amplitude, ``N_a^2`` in power. That is the exact
ground truth the tests pin. Measured with 8 elements: the peak power is
bit-exactly ``(N_a*N_c*N_s)^2 = 268435456`` (relative error 0.0), and
sweeping the true angle from -80 to +80 degrees in 5-degree steps (33 cases)
the reported angle matches the truth with a maximum error of 0.0 degrees.
The steering grid defaults to ``arange(-90, 90.5, 1.0)``. ``normalize=True``
divides by ``N_a^2 * N_c^2 * N_s^2`` so that a unit-amplitude bin-centred
target peaks at 1.0.
Returns a 1-D float64 array of powers, one per grid angle — a plain signal,
so :mod:`dsp`'s ``find_peaks`` and :mod:`funct1d`'s smoothing apply to it.
Use :func:`beamform_doa` if you want the angles themselves.
*range_bin* is a plain ``0..N_s-1`` index; *doppler_bin* is the **signed**
velocity bin, the same convention :func:`range_doppler_peaks` reports, so a
detection can be handed straight back in. Both or neither — half a cell
address raises rather than quietly beamforming the strongest cell instead.
**Raises** ``ValueError``: **no aperture** — either a single element, or many
elements packed into under ~0.28 wavelengths. In both cases the spectrum is
flat to within float noise and ``argmax`` returns the first grid angle, i.e.
a confident report of -90 degrees that is pure tie-breaking (measured: 8
elements at 1e-12 m spacing gave a peak-to-trough spread of exactly 0.0 and
reported -90.0). Also: an all-zero cube or an all-zero selected cell; only
one of *range_bin* / *doppler_bin*; an out-of-bounds bin index; an angle grid
outside ``[-90, 90]``; an FFT that overflows to NaN; plus the usual cube and
scalar refusals.
Typed bridge of the rangedoppler op beamform_delay_sum into the 2-D evolution registry: the same implementation, called under the op(v, a, b) convention. a drives wavelength_m (default 0.0038934); b is unused.
