tb_angular_spectrum_propagate — 2D typed op
- データ種:
cimage→cimage - 呼び出し:
fullseye.apply(img, "tb_angular_spectrum_propagate", a=0.5, b=0.5)(2-D は 1 画像 + 2 スカラつまみa,b∈[0,1]のモデル)
図は合成の入力 128×128 で実際に走らせた出力。左が入力、右が出力。点群は上から見た散布(明るさ = z)、1-D 列は折れ線、体積は z 方向の最大値投影、動画は中央フレーム、複素画像は振幅、絵にならない返り値は値そのもの。

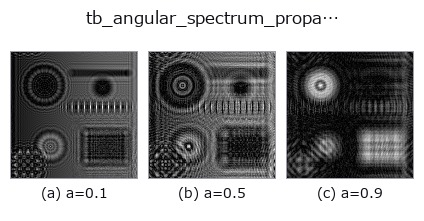

つまみ a を振る(0.1 / 0.5 / 0.9、もう一方は既定):

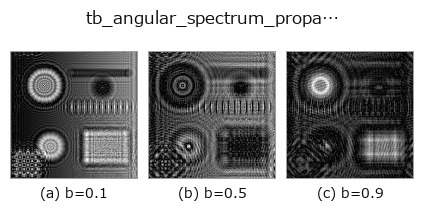

つまみ b を振る(0.1 / 0.5 / 0.9、もう一方は既定):

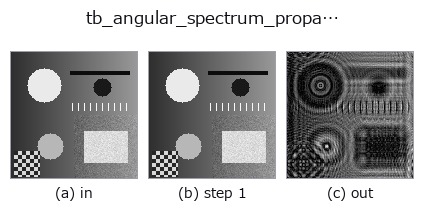

段階(前置きの op → この op。左から順):

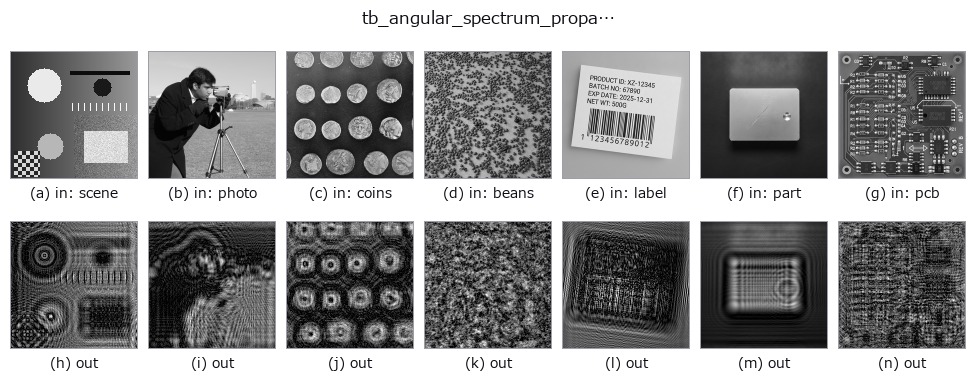

別の画像でも(合成シーン / 写真 / 硬貨。上段が入力、下段がその出力。つまみは既定):
使い方
Exact scalar free-space propagation of a complex field (angular spectrum).
``U(z) = IFFT{ FFT{U(0)} * exp(i*2*pi*z*sqrt(1/lambda^2 - fx^2 - fy^2)) }``
in the ``exp(-i*omega*t)`` convention, so a positive *distance_um*
propagates forward. Components beyond the propagating cone
(``fx^2 + fy^2 > 1/lambda^2``) are **attenuated** by
``exp(-2*pi*|z|*sqrt(fx^2 + fy^2 - 1/lambda^2))``, which is the physical
evanescent decay — not zeroed, so ``distance_um = 0`` is an *exact*
identity and the transfer function is continuous through it.
Unlike Fresnel propagation this makes no paraxial approximation: it is the
exact solution of the Helmholtz equation for a band-limited field, valid
from a fraction of a wavelength outward.
Returns a complex128 array with the same shape as *field*.
Ground truth it reproduces (measured): ``distance_um = 0`` returns the field
bit-identically (it short-circuits the transform pair); propagating ``+z``
then ``-z`` returns the original to a relative L2 error of 4.3e-16 to
5.3e-16 for a band-limited field (measured on three: 64x64 random at
+/-50 um, a 64x64 Gaussian at +/-250 um, a 128x128 random at +/-500 um);
total power is conserved to between 0 and 3.5e-16 relative on the same
three. A field *with*
evanescent content does **not** round-trip — those components are gone by
construction, in both directions, because that is what physically happens.
*field* is a field in the **space** domain, not a spectrum: do not hand it
the fftshifted output of :func:`complexops.cx_fft`. Real input is promoted
to complex, which loses nothing.
Aliasing: the discrete transfer function is periodic, so a field that
diffracts past the array edge wraps around. The practical guard is the
usual one — pad the field so the propagated support stays inside, and keep
``pixel_pitch_um`` below ``lambda/(2*NA)``. No warning can detect this
reliably from the array alone, so none is invented.
**Raises** ``ValueError``: *field* is not 2-D, smaller than 2x2, larger than
:data:`MAX_FIELD_ELEMENTS`, masked, or non-finite; non-positive or
non-finite *wavelength_um* / *pixel_pitch_um*; non-finite *distance_um*.
Typed bridge of the optics op angular_spectrum_propagate into the 2-D evolution registry: the same implementation, called under the op(v, a, b) convention. a drives wavelength_um (default 0.55) and b drives distance_um (default 100).
